[Hometech] Portable Digital Oscilloscope or Basic Signal Analysis

[Hometech]Portable Measurement and Intended Use

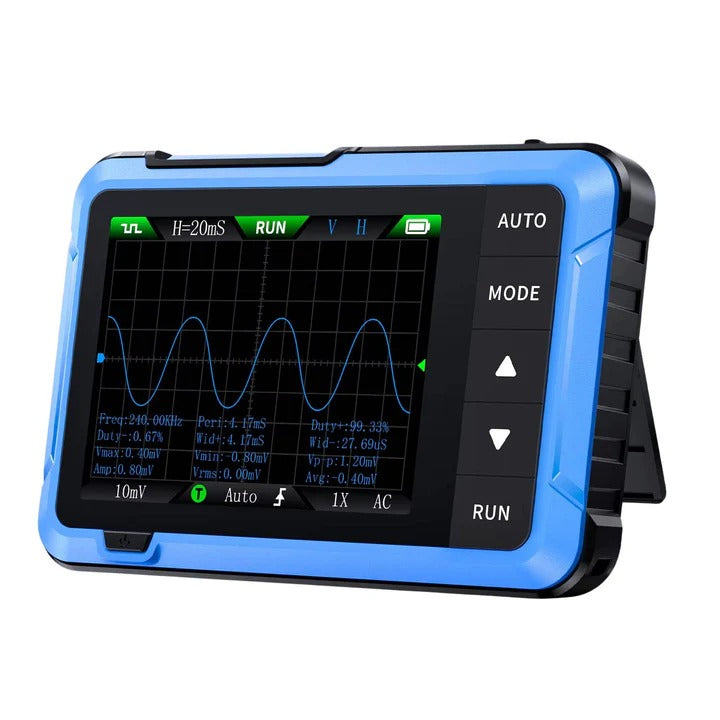

This portable digital oscilloscope is designed to assist with observing and analyzing electronic signals in a compact format. Its handheld size may help support basic diagnostics, learning, or troubleshooting tasks without the need for a full benchtop unit. Measurement clarity, accuracy, and usability may vary depending on signal type, configuration, and user experience.

[Hometech]Instant Visualization and Control

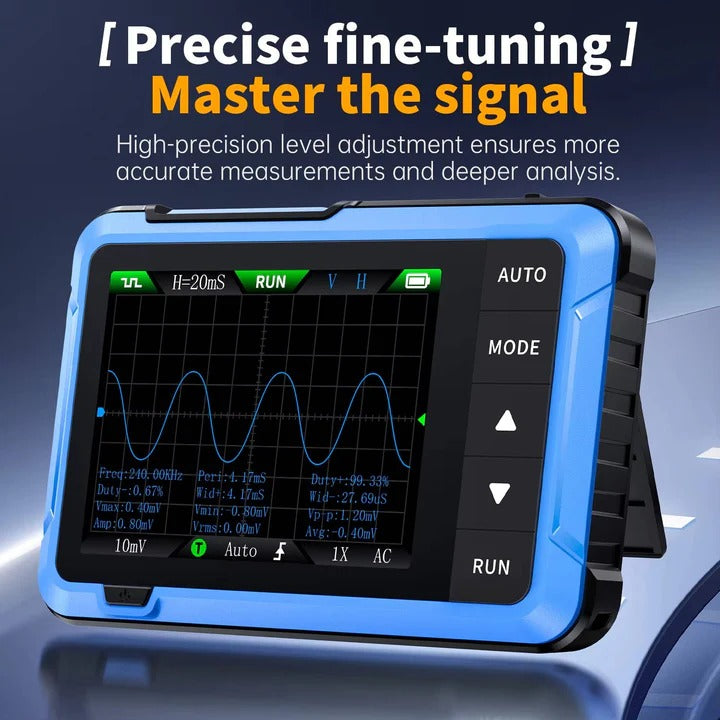

The device features a 2.8-inch LCD screen intended to display waveform data during use. An automatic setup function is included to assist with basic signal capture by adjusting parameters based on detected input. Trigger modes such as Auto, Normal, and Single are provided to support different observation scenarios. Display responsiveness and signal capture performance may vary depending on signal characteristics.

[Hometech]Model Options and Capabilities

Two versions are available to support different use requirements. The Standard version is intended for basic signal observation and educational use, while the Pro version offers higher sampling rates and bandwidth intended to support more complex signal analysis. Both versions include protective circuitry designed to assist with handling a range of input voltages. Actual operating limits and protection effectiveness may vary depending on conditions and correct usage.

[Hometech]Product Specifications

• Display: 2.8-inch HD LCD (320x240)
• Max Voltage: ±400V
• Battery Life: 4 Hours (1000mAh)
• Trigger Modes: Single, Normal, Auto
• Standard Specs: 5MS/s Rate, 1MHz Bandwidth, 10KHz Gen
• Pro Specs: 48MS/s Rate, 10MHz Bandwidth, 50KHz Gen

[Hometech]What’s Included

• 1 x Digital Oscilloscope Portable
• 1 x Alligator Clip Probe
• 1 x Charging Cable
• 1 x Lanyard
• 1 x User Manual
• Pro Model Only: 1 x 100MHz Passive Probe & Adapter

[Hometech]Frequently Asked Questions

What is the main difference between the Standard and Pro models?
The Pro version is designed with higher sampling rate and bandwidth to support more advanced signal analysis. Performance suitability may vary depending on application.

How long does the battery last?
Battery runtime is designed for up to 4 hours. Actual battery life may vary based on screen brightness, usage patterns, and settings.

Is it safe for high voltage?
The device includes circuitry intended to support measurement of higher voltages within specified limits. Users should follow instructions carefully and verify compatibility for their application.

Does it have an auto-set feature?
Yes, an AUTO function is included to assist with basic signal display setup. Results may vary depending on signal stability and characteristics.
